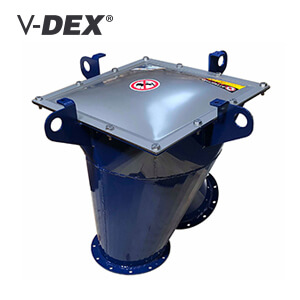

V-DEX

Diverter

APPLICATIONS

The V-DEX diverter is used to deflect explosions propagating through the ducts, preventing the spread of flames or overpressures in connected vessels.
This device reduces the risk of flame spread.

Body: Painted steell
Explosion vent panel VL or domed explosion vent panel VD
Body: Stainless steel
EN 14 797
EN 14 491
Explosion vent panel dimensions
MODELøH1H2D1D2L1L2TVent panel
MODELøH1H2D1D2L1L2TVent panel
MODELøH1H2D1D2L1L2TVent panel
MODELLøH1H2D1D2L1L2TBerst-scheibe
Model A200150555200410410410685VD 410x410
Model A250175600250490490490781VD 490x490
Model A300200700300610610610875VD 610x610
Model A350225800350645645645975VD 645x645
Model A4002509004007807807801070VD 780x780
Model A450275100045085092092011652 x VD 457x890
Model A500300110050092092092012602 x VD 457x890
Model A550325120055098098098013552 x VD 457x890
Model A600350130060010701020102014552 x VD 586x920
Model A650375140065011801180118015502 x VD 586x920
Model B700400150070012501375113016454 x VD 610x610
Model B750425160075013501455135017404 x VD 610x610
Model B800450170080014301455135018354 x VD 645x645
Model B850475180085015201605152019304 x VD 586x920
Model B900500190090016001605152020304 x VD 586x920
Model B950525200095017001785178021256 x VD 457x890
Model B10005502100100017801785178022206 x VD 530x850
STIF MODELKST MAXPred. MaxPMAXDUST
STIF MODELKST MAXPred. MaxPMAXDUST
STIF MODELKST MAXPred. MaxPMAXDUST
STIF MODELKST MAXPred. MaxPMAXDUST
V-DEXSt2 ≤ 300 bar.m/s0,8 bar.m/s≤ 10 barAny kind of dust
